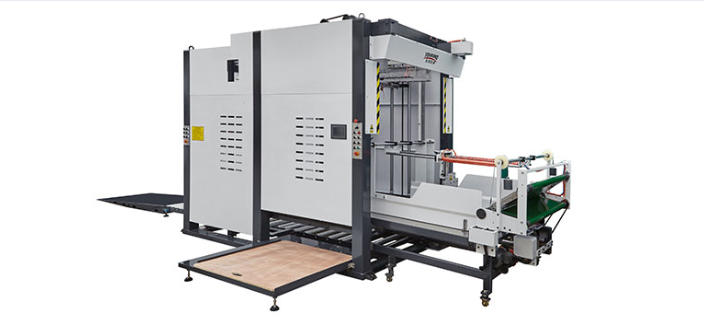

Auto Pile Turner and Stacking Machine is the special accessory products for sheet to sheet laminating machines and can be connected with any of manufacturer’s laminating machine. This integrative equipment can auto make the laminated papers to piles according to specified number. With collecting, piling, intermittent turning and stacking functions, realize collected paper front and backside placed stacking, effectively prevent laminated paper curving and manpower-saving for labor collecting strength.
Features
- Auto Collecting
- Front and Back Placed Stacking
- Collecting Orderly
- One Key Operation
- Fault Detection
- Easy Connecting
- Space Saving
- Simple and easy to learn
- Save time and effort
Function Introduction
The driving wheel and laminating press belt work together to transmit power. The laminated paper is stacked onto the lower pallet by the driving wheel and synchronous belt. When the specified number of sheets is reached, the separating rod lifts to separate the paper.
Specification
| Model | 1450S | 1650S |
| Max Sheet size | 1450X1450 | 1650X1450 |
| Min Sheet size | 500X500 | 500X500 |
| Overall | 6830X2760X2950 | 6830X3160X2950 |
| Weight | 3700KGS | 4000KGS |
| Power | 6KW | 6KW |
