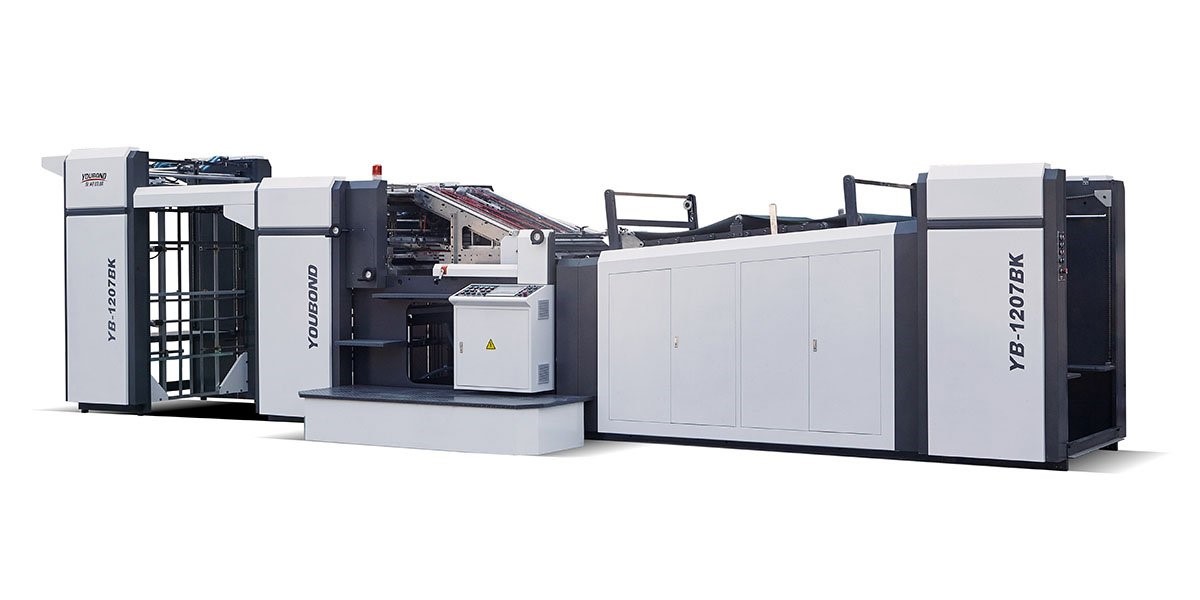

The Fute Laminating Machine (Carton + Carton) of the “BK” series is a very compact and versatile large format automatic coupler, used to couple two cartons, placed one on the upper part and the other on the lower part. This model is available in 120×72 cm and 120×100 cm formats.
The cardboard positioned in the upper part is initially coupled with the cardboard positioned in the lower part and subsequently they are well pressed by the conveyor belt.
The machine is widely used in producing wine boxes, labels, puzzles, gift boxes, etc.
Specification
| Model | YB-1207BK | YB-1210BK |
| Max sheet size | 1200×710mm | 1200×950mm |
| Min sheet size | 450×280mm | 450×280mm |
| Top paper thickness | 100-800g/m2 | 100-800g/m2 |
| Bottom paper thickness | 180-1200g/m2 | 180-1200g/m2 |
| Accuracy | ±0.5mm | ±0.5mm |
| Weight | 7500KGS | 7500KGS |
| Machine power | 20KW | 20KW |
