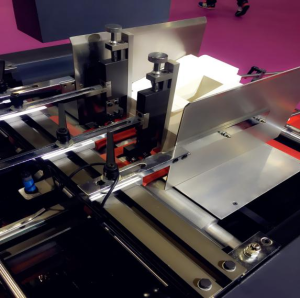

The ZKT-700B/1080B window patching machine is an automatic machine model, equipped with 2 servo motors, one of which is located in the sheet feeder part and the other positioned in the film cutting unit.
Used to glue the film flat, cut at a V angle and crease.
Main features
- Greater precision
- Horizontal cut film
- Automatic counter
- 2 servo motors, for more accurate and precise control of the sheet feeder and film cutting
- Horizontal V-cut and Creasing (optional)
- Customizing windows with special shapes (optional)
- Device for making holes in the film (optional)
- High precision point to point positioning
- Lateral tracking of the printed film
- Automatic machine stop when no sheet is detected
- The part to be glued rises automatically in the absence of a sheet or double sheet
- The machine stops when the car door is opened
- Different buttons in different positions of the machine, convenient to use
Touch screen
- Storage of the same orders in memory
- Production quantity counting
- Display of production status
- Equipped with WiFii, remote troubleshooting and diagnosis
- Various machine adjustments directly from the touch screen
Greater precision
- Multiple sensor to detect machine status
- Automatic deviation correction system for greater accuracy
- Perfect machine structure design, reducing paper slippage and deviation possibility
| Model | ZKT-700B | ZKT-1080B |
| Speed | 7.000-21.000 pz/h | 6.000-10.000 pz/h |
| Speed cutting corners | 5.000-10.000 pz/h | 4.000-7.000 pz/h |
| Speed creasing | 5.000-10.000 pz/h | 4.000-7.000 pz/h |
| Paper width | 140-600 mm | 200-700 mm |
| Film width | 60-400 mm | 70-400 mm |
| Paper lenght | 140-690 mm | 200-1080 mm |
| Film lenght | 30-400 mm | 30-500 mm |
| Film thickness | 0,03-0,25 mm | 0,03-0,25 mm |
| Pump power | 1,5 kw | 1,5 kw |
| Total power | 2,2 kw | 2,2 kw |
| Weight | 2.800 kg | 3.500 kg |
| Size | 4200x1400x1550 | 5500x1900x1600 |
