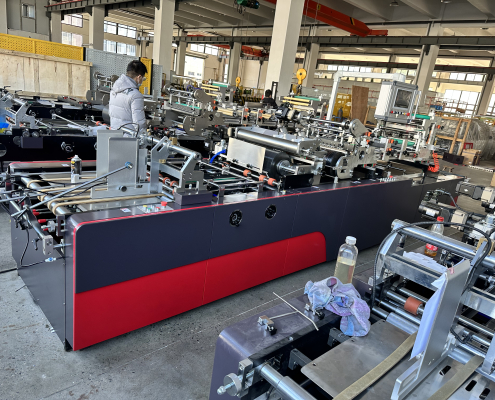

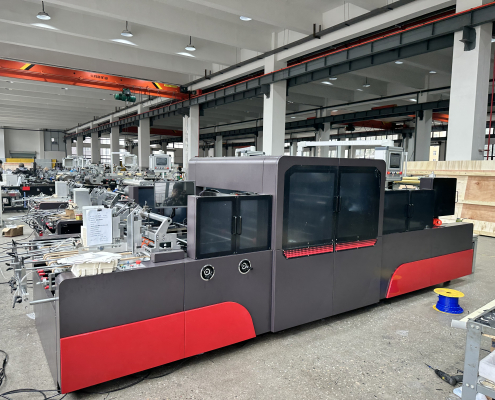

The ZKT-890A/1200A window patching machine is an automatic machine model, equipped with 11 servo motors for the most accurate and precise control of all the moving parts of the machine. Used to glue the film flat, cut at a V angle and crease.
Main features
- Greater precision
- Horizontal cut film
- Automatic counter
- 11 servo motors, for more accurate and precise control of all parts of the machine
- Horizontal V-cut and Creasing (optional)
- Customizing windows with special shapes (optional)
- Device for making holes in the film (optional)
- High precision point to point positioning
- Lateral tracking of the printed film
- Automatic machine stop when no sheet is detected
- The part to be glued rises automatically in the absence of a sheet or double sheet
- The machine stops when the car door is opened
- Different buttons in different positions of the machine, convenient to use
Touch screen
- Storage of the same orders in memory
- Production quantity counting
- Display of production status
- Equipped with WiFii, remote troubleshooting and diagnosis
- Various machine adjustments directly from the touch screen
Greater precision
- Multiple sensor to detect machine status
- Automatic deviation correction system for greater accuracy
- Perfect machine structure design, reducing paper slippage and deviation possibility
| Model | ZKT-890A | ZKT-1200A |
| Speed | 4.000-13.000 pz/h | 4.000-13.000 pz/h |
| Corner cutting speed | 4.000-12.000 pz/h | 4.000-12.000 pz/h |
| Speed creasing | 4.000-12.000 pz/h | 4.000-12.000 pz/h |
| Paper width | 140-800mm | 140-1200mm |
| Film width | 40-450mm | 40-500mm |
| Paper lenght | 120-780mm | 120-780mm |
| Film lenght | 60-400mm | 60-400mm |
| Film thickness | 0,05-0,25mm | 0,05-0,25mm |
| Pump power | 4.5kw | 4.5kw |
| Total power | 19.5kw | 19.5kw |
| Weight | 2300kg | 3000kg |
| SIze | 6500x1650x1950 | 6500x2150x1950 |
