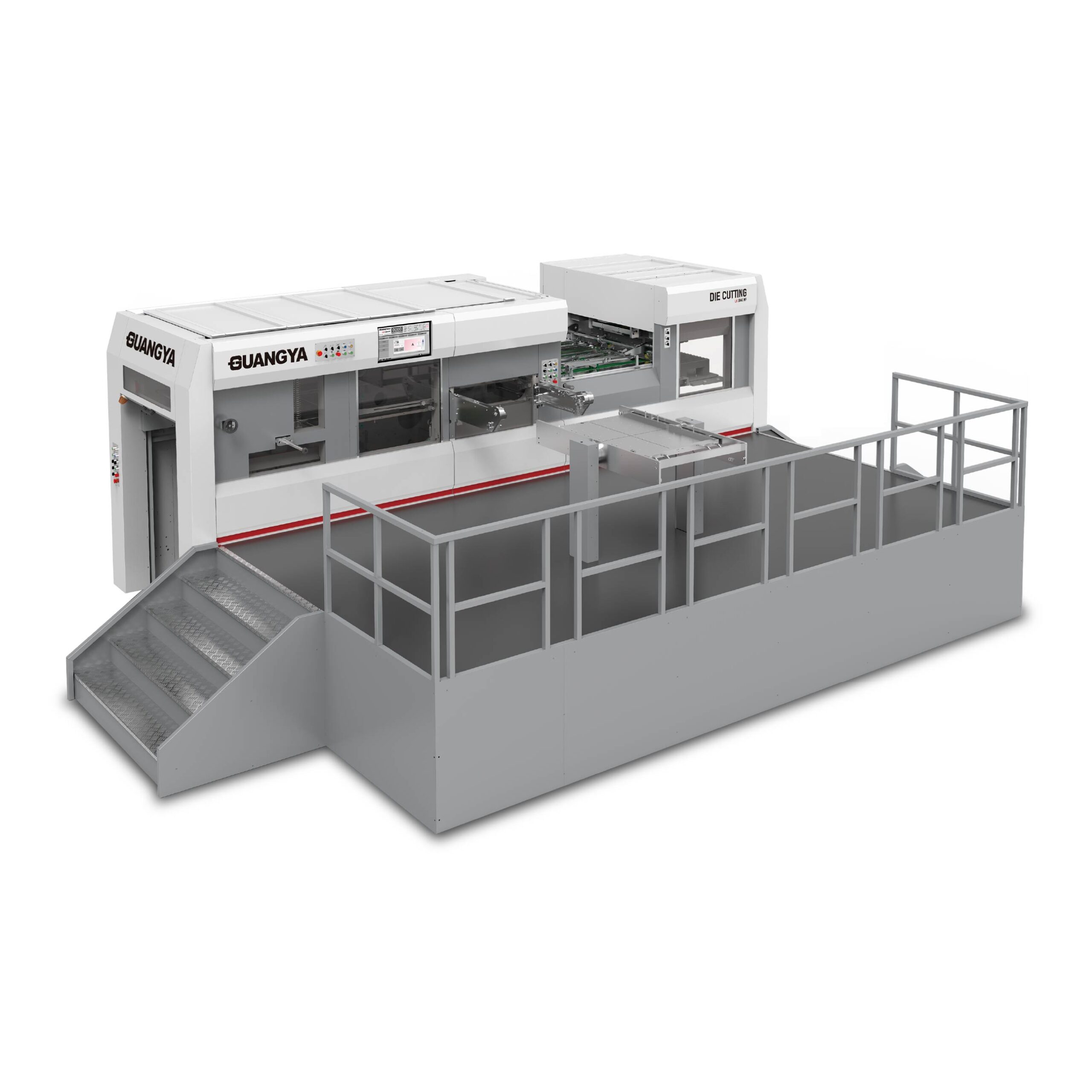

LK 106EMF automatic intelligent die-cutting machine with stripping is the new generation of LK E series. It is developed on the basis of Guangya’s years of experience of manufacturing of Automatic Foil Stamping and Die Cutting Machines, and of analysis of similar products by the major producers in the industry from both home and abroad as well as of suggestions from our customers.
This machine is mainly used for die-cutting and stripping of cartonsand trademarks in the packaging and decoration industry, especially for various high-end and fine printed matters, such as cigarette boxes, wine boxes, gift boxes, small household appliance boxes, cosmetic boxes, etc.
All of them can be embossed and indented on this machine to obtain three-dimensional, exquisite and beautiful printed products.
The whole production flow ranging from feeding and die cutting to the delivery are completely automated. It also features automatic detection, malfunction display, high cutting force as well as high registering accuracy. The main drive is equipped with pneumatic clutch and braking device.
Furthermore, photocells and safety devices are located on the machine, which help to minimize injuries to the operator and damage to the machine that might be caused by the emergency.
| Model | LK106EMF |
| Max paper size | 760x1060mm |
| Min paper size | 340x400mm |
| Max format die-cutting | 746x1060mm |
| Max die cutting speed (sheets/min) | 8000 |
| Max entry pile height | 1400mm |
| Max output pile height | 1100mm |
| Support weight | 80÷2000g/m2 |
| Corrugated cardboard thickness | fino a 4mm |
| Die cutting precisions | 0,1mm |
| Working power | 350T |
| Total power | 20kw |
| Weight | 24,8T |
| Air required | 6Bar, >0,37m3/min |
| Dimensions (mm) | 7500x5800x2320 |
The non-stop power system includes imported high-speed power supply, anti-collision protection, electric adjustment and one-button automatic start function, ensuring precise feeding through synchronous belt drive.
The feed table uses self-tensioning major belts, adaptive pressure wheels, integrated electrically regulated front and side guides, anti-static stainless steel and an ultrasonic double sheet sensor.
The host station offers functions of electric pressure regulation, imported intermittent mechanism and synchronous belt drive to ensure operating precision.
The frame and bottom plate include two-way locking devices, anti-fall protection, integrated bottom plate, steel imported from Germany and cutting table frame with quick lock and central positioning.
The host structure is designed with treated materials to withstand high pressures and working speeds. The stripping station has three stripping mechanisms with central positioning function, pneumatic movement and automatic and quick locking functions.
The delivery includes automatic non-stop functions, non-stop sampling, servo-controlled brake brushes, rear jogger fine adjustment device, tape inserter, safety tensioner, adjustable ventilation system and automatic intermittent lubrication.
The control system includes large industrial touch screen, imported motion control system and modular electrical system with imported equipment and remote module for maintenance.
