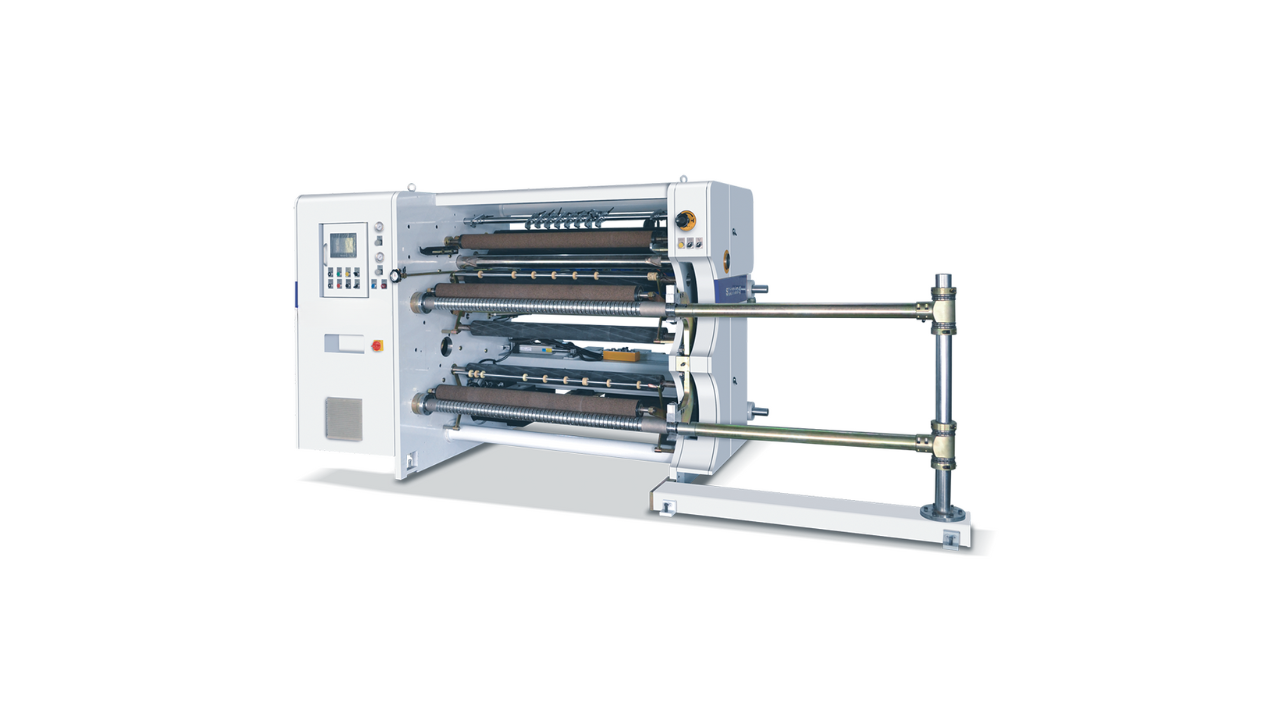

EKS-ZSFQ High-Speed Slitting and Rewinding Machine is designed for slitting and rewinding materials with uneven thicknesses, such as PET, BOPP, CPP, PE, PVC films, and paper. Its main features include:
- Central Winding Mode: Ensures a flat winding surface.
- Frequency Conversion Speed Regulation: Ensures stable operation during acceleration.
- Upper and Lower Air Expansion Shafts: Optimize the winding process.
- Automatic Deviation Correction with Photoelectric System: Allows precise cutting of irregular materials.
- Satin Finish and Painted Enclosure: Customizable color options.
- Rotary Slitting Knives with Felt and High-Power Edge Trim Suction Fan: Ensures effective removal of residues.
This machine is ideal for cutting wide materials, such as paper, mica tape, or film, into narrower strips and is used in the paper, film, printing, and packaging industries.
| Model | EKS-ZSFQ-1300C | EKS-ZSFQ-1600C |
|---|---|---|
| Max. Width of Unwinding | 1300 mm | 1600 mm |
| Max. Diameter of Unwinding | 1400 mm | 1400 mm |
| Min. Width of Slitting | 30 mm | 30 mm |
| Max. Diameter of Rewinding | 600 mm | 600 mm |
| Speed of Slitting | 80-400 m/min | 80-400 m/min |
| Total Power | 21 kW | 27 kW |
| Power Supply | 380V/50Hz | 380V/50Hz |
| Overall Dimension | 2050 × 3000 × 1720 mm | 2050 × 3300 × 1720 mm |
| Weight | 3500 kg | 4000 kg |
| Collector Frame Overall Dimension | 1530 × 1250 mm | 1530 × 1250 mm |
