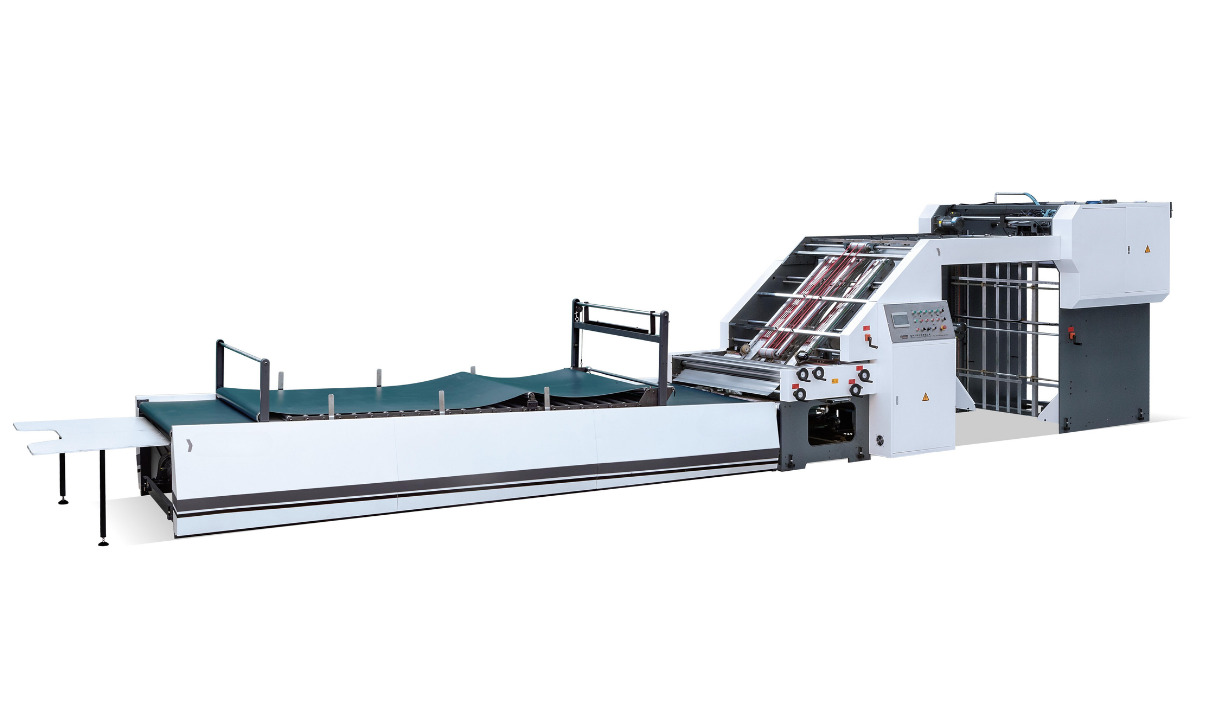

The “F” series automatic laminating machine is a new product designed and studied for the majority of producers of corrugated cardboard boxes or lithographed laminate.
It is available in various formats with the YB-1150F, YB-1450E, YB-1650E models and the extra accessories can be configured at the customer’s discretion based on his needs, so as to be able to guarantee high performance and quality of the boxes.
This servo-driven laminating machine ensures high-precision alignment using photoelectric sensors and independent servo-compensation. It is designed for ease of use, featuring fully automatic adjustment based on the paper size dimensions entered by the operator.
Specification
| Model | YB-1150F | YB-1450F | YB-1650F |
| Max Sheet Size | 1150×1150mm | 1450×1450mm | 1650×1650mm |
| Min Sheet Size | 350×350mm | 380×350mm | 380×350mm |
| Top Sheet Thickness | 120-500g | 120-500g | 120-500g |
| Bottom Sheet Thickness | A、B、C、E、F Corrugated paper, Industrial paperboard | ||
| Max Speed | 150 m/min | 150 m/min | 150 m/min |
| Fitting Precision | ±1mm | ±1mm | ±1mm |
| Dimensions | 12×2.2×2.4 m | 13×2.4×2.4 m | 13.5×2.6×2.4 m |
| Machine Weight | 5000 kgs | 5500 kgs | 6000 kgs |
| Machine Power | 20KW/380V | 22KW/380V | 25KW/380V |
