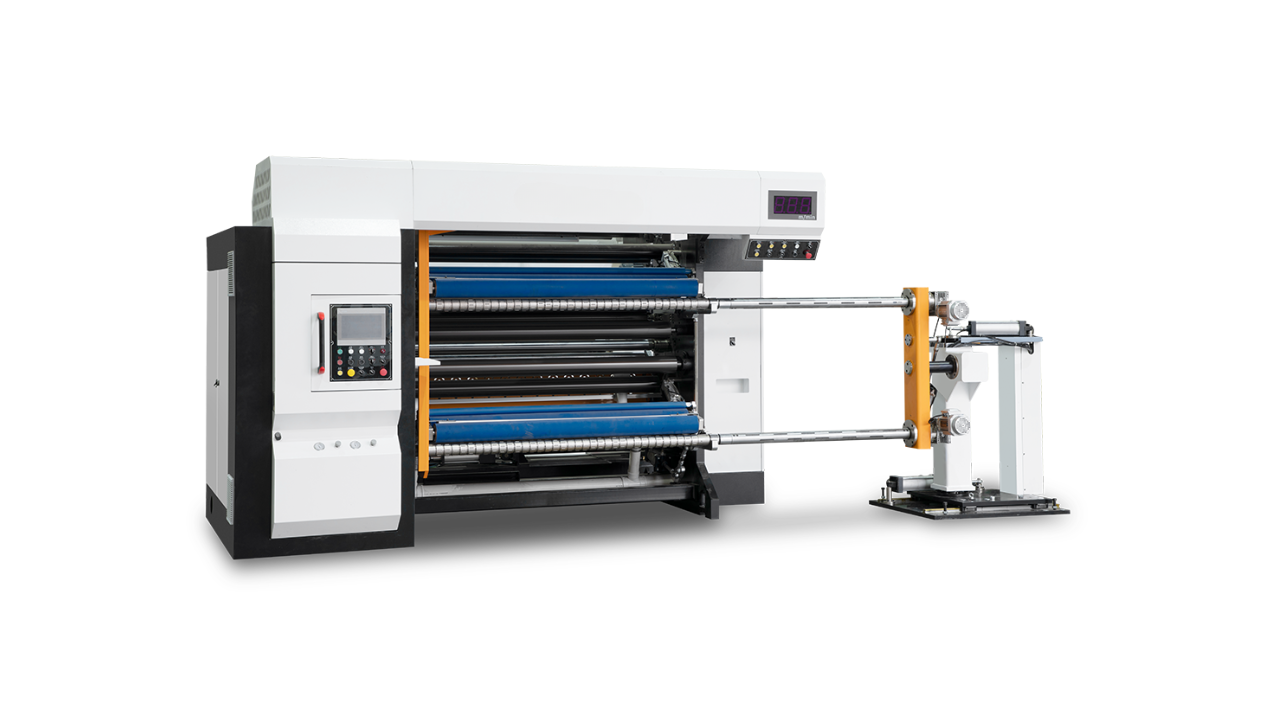

EKS-CM High Precision Automatic Slitting and Rewinding Machine

FEATURES AND OPERATION:

1. Control and Precision:

• PLC Control: The machine uses a PLC (Programmable Logic Controller) control system to precisely manage operations.
• Servo Motors: Equipped with three servo motors, it ensures smooth operation and synchronization.
• Automatic Tension Control: Ensures continuous and precise tension adjustment during the entire winding and cutting process.
• Crimping and Winding Surface: The center surface crimping and a smooth and narrow winding surface contribute to uniform rewinding.

2. Speed Regulation:

• Frequency Conversion: Speed regulation by a frequency converter allows smooth operation even during acceleration.

3. Automatic Functions:

• Automatic Counting: The system features automatic roll counting and alarm stop for efficient management.
• Automatic Side Waste Fan Elimination: Automatically removes waste materials, keeping the working environment clean.

4. Rewinding Structure:

• Double Slip Differential Shaft: This structure facilitates the use of the unloading tower, improving the operating efficiency.

5. Deviation Correction:

• Ultrasonic Sensor: The automatic correction system uses an ultrasonic sensor to automatically adjust the unwinding position, maintaining the correct alignment of the material.

6. Cutting and Feeding:

• Shear and Razor Cutting: Ensures precise and high-quality cutting.
• Split Shaftless Feeding Structure: Optimizes the material feeding process, reducing setup time and improving efficiency.

7. Automatic Unloading Device:

• Facilitates the removal of finished rolls, improving efficiency and productivity.

The EKS-CM machine is designed to offer high performance and reliability, making it suitable for various applications in the paper and similar materials processing industry.

Here is the table with the specifications of the EKS-CM-1300 and EKS-CM-1700 models:
