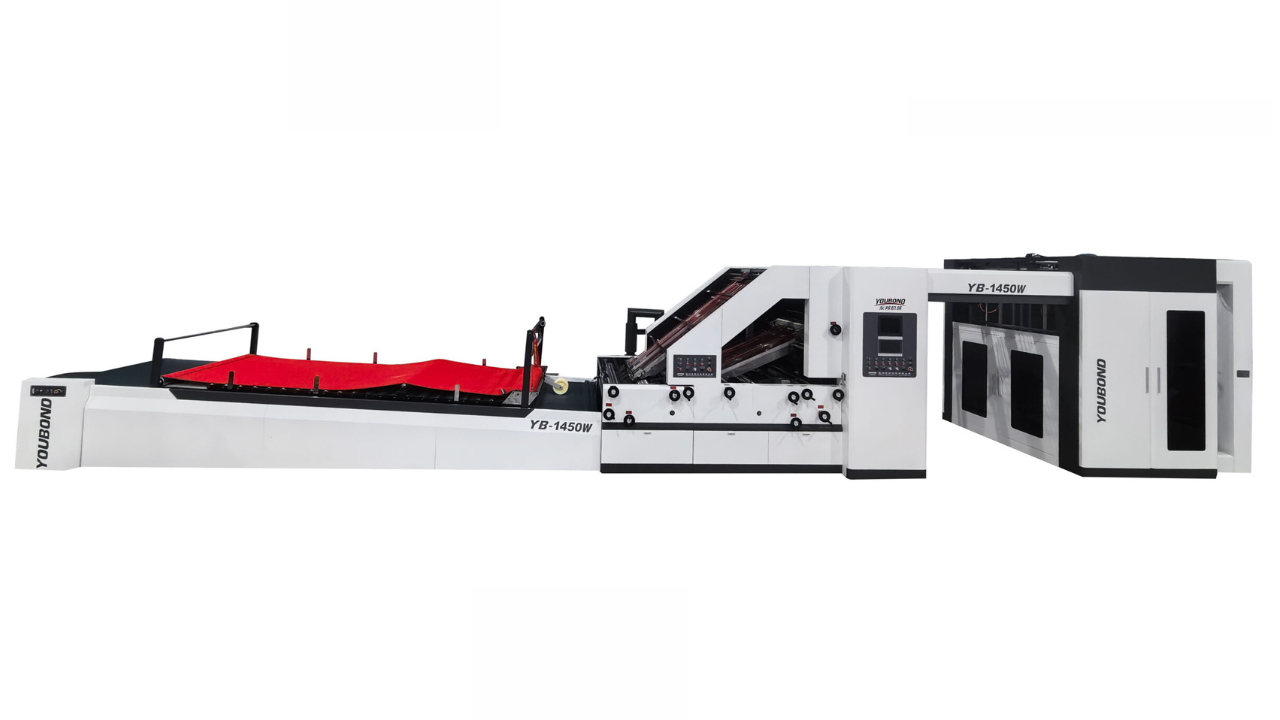

YB1450W YB1650W Automatic 5ply Flute Laminating Machine

A workable mechanical laminating machine, for printed cardboard and corrugated paper laminating machine, the whole machine is made up of 3 automatic feeding part (Top sheet feeder and 2 corrugated paper feeding part), two parts of gluing, two parts of laminating, one part of pressing conveyor.

Suitable for the laminating of cardboard to A flute+A flute，A flute+B flute，A flute+E flute，B flute+A flute，B flute+B flute，B flute+E flute，E flute+A flute，E flute+B flute，E flute+E flute, corrugated could be changed as needed. It could also laminate cardboard to single flute to make 3ply sheet. And also for the lamination of corrugated to carrugated to 4 ply corrugated paper. A good machine for the printing process,good accuracy and quick operation, labor and time saving

Division introduction

1. TOP FEEDER (FOR CARDBOARD)

Four sets of foreheading suckers ensuring smooth feeding , and two sets of picking suckers. Emergency stop control for double sheet, a missed sheet or misaligned sheet. Alarm for error.

2. CORRUGATED PAPER (MIDDLE AND LOWER) FEEDER

Could control either part of the corrugated feeding part to feed sheet Single corrugated bottom feeding, with strong suction power

Equipped with 14 sucking belts ( 7 for each),strong suction and smooth feeding.

3. PAPER COLLECTOR

Moving in line with elasticity, moving forward on the edge of the sheet, smooth and stable Total 20 front gauges (8 on front and 12 on the back), driven smoothly by the left and right chains, bite type moving forward, pushing the paper in an accurate way

The moving of the top sheet and bottom sheet is controlled by the “relative position controller”, it could adjust the size accurately, the accuracy was within the ±1.5mm

4. LAMINATING PART

The front laminating part could handle A flute+A flute，A flute+B flute，A flute+E flute，B flute+A flute，B flute+B flute，B flute+E flute，E flute+A flute，E flute+B flute，E flute+E flute, the laminated flute could exchange to each other. And it could laminate the cardboard to one flute, the top sheet could be the filmed and coated paper, and no different to the speed,normally the speed is 0-80sheet/min. The glue part is made up of 4 rollers, the upper ones are glue roller and metering roller, the down is pressure roller, the metering roller could control the density of the glue, glue painted on the corrugated paper and controlled by the pressure roller, make the corrugated move forward and laminated with the top sheet.

FOUNDATION LAYOUT

SPECIFICATIONS
