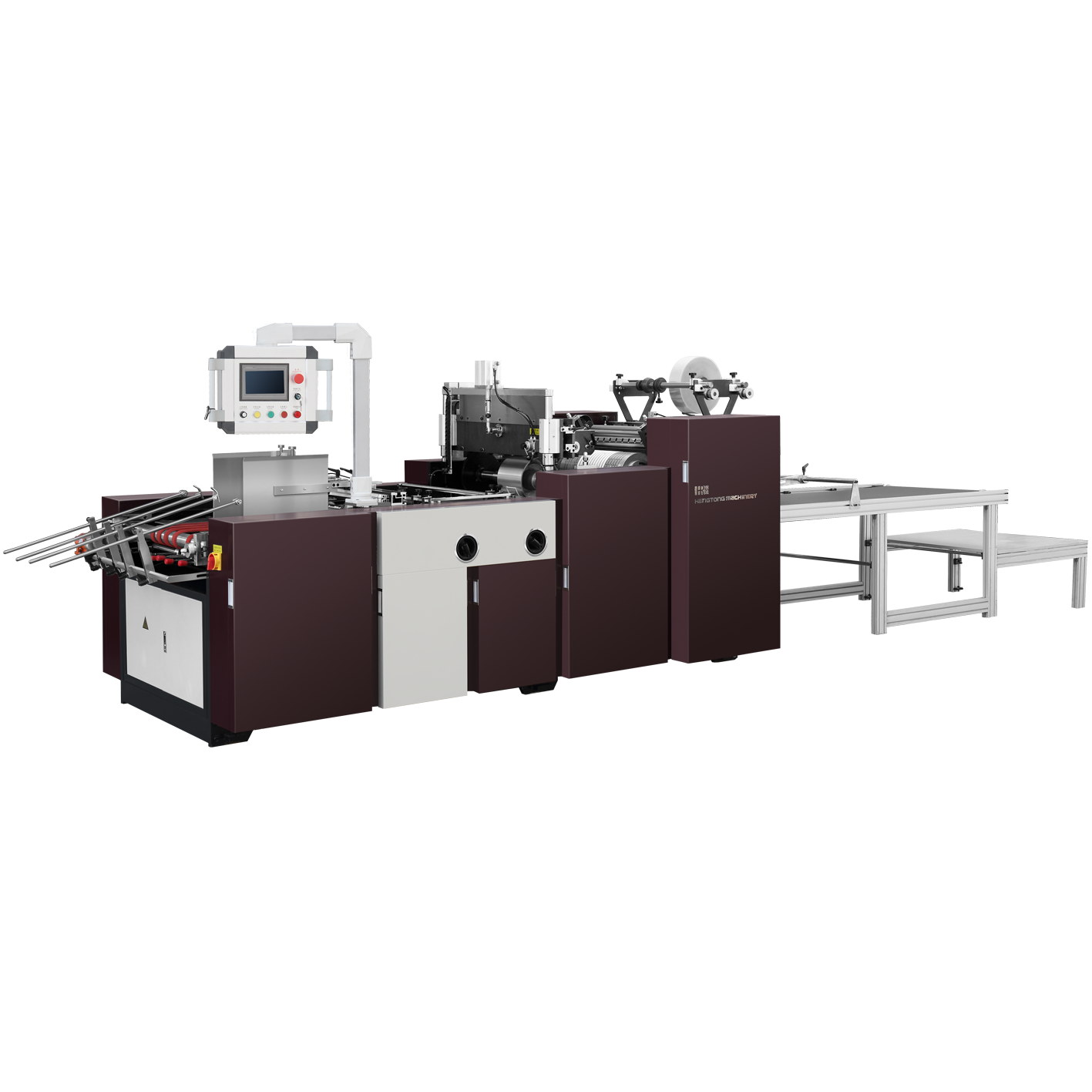

The ZKT-500B window patching machine is a model of automatic machine, equipped with 2 servo motors, one of which is located in the sheet feeder part and the other positioned in the film cutting unit. Used to glue the film flat, cut at a V angle and crease.
Main features
- Greater precision
- Horizontal cut film
- Automatic counter
- 2 servo motors, for more accurate and precise control of the sheet feeder and film cutting
- Horizontal V-cut and Creasing (optional)
- Customizing windows with special shapes (optional)
- Device for making holes in the film (optional)
- High precision point-to-point positioning
- Lateral tracking of the printed film
- Automatic machine stop when no sheet is detected
- The part to be glued rises automatically in the absence of a sheet or double sheet
- The machine stops when the car door is opened
- Different buttons in different positions of the machine, convenient to use
Touch screen
- Storage of the same orders in memory
- Production quantity counting
- Display of production status
- Equipped with WiFii, remote troubleshooting and diagnosis
- Various machine adjustments directly from the touch screen
Greater precisiom
- Multiple sensor to detect machine status
- Automatic deviation correction system for greater accuracy
- Perfect machine structure design, reducing paper slippage and deviation possibility
| Model | ZKT-500B |
| Speed | 6.000-10.000 pz/h |
| Speed corner cutting and creasing | 4.000-7.000 pz/h |
| Paper size | 100×120-330x500mm |
| Paper weight | 250-1.000g/mq |
| Film size | 60×30-120x160mm |
| Film thickness | 0,03-0,25mm |
| Pump power | 0,75kw |
| Total power | 1.5kw |
| Weight | 1400kg |
| Size | 3980x950x1400 |
