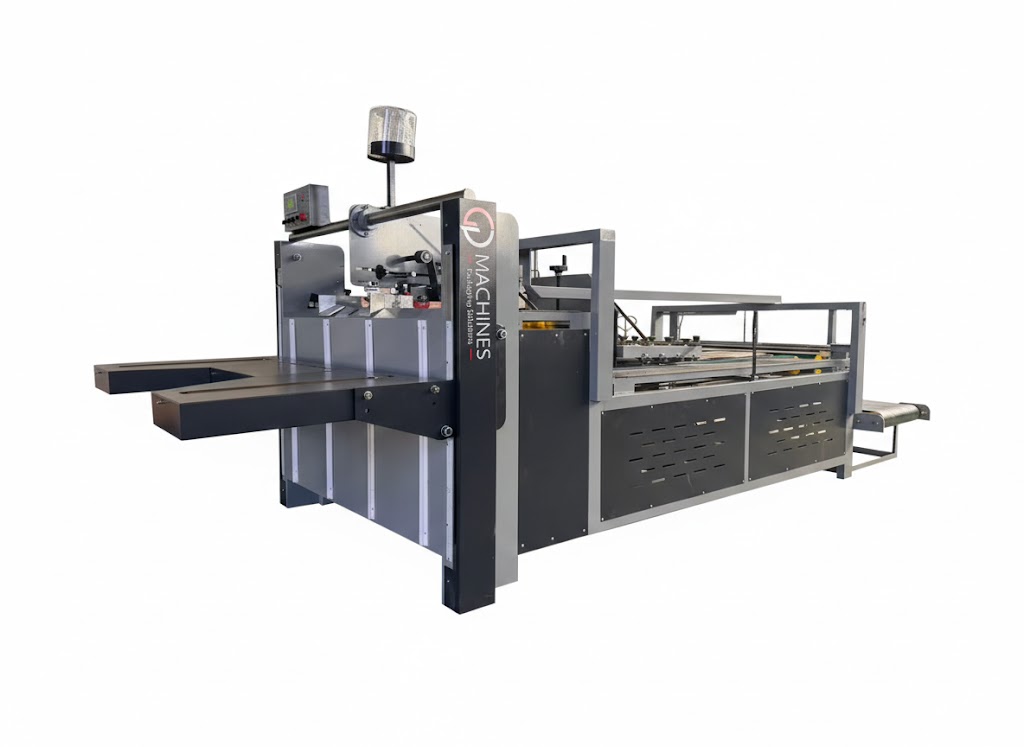

The semi automatic gluing machine GP-2800 ZXJ is a latest-generation machine designed for processing cardboard boxes, specifically suited for 3-ply and 5-ply corrugated board. It offers a high-quality finish with significantly reduced operational costs.
| Model | GP-2800 ZXJ |
| Speed | Up to 60 pieces/minute |
| Max Format | (L+W) x 2 = 2800 mm |
| Min Format | (L+W) x 2 = 600 mm |
| Installed Power | 3 KW |
| Machine Dimensions | 5300 x 2000 x 1800 mm |
Key Benefits
Smart Feeding Table
The feeding table is equipped with photoelectric height control and an automatic up-and-down movement, keeping the carton constantly in the correct working position. This system reduces manual operator intervention and significantly increases production efficiency.
Cost Savings
Production costs are up to 10 times lower compared to traditional gluing systems.
Superior Quality
Ensures cartons that are aesthetically refined, stable, and consistent.
Operational Efficiency
The semi-automatic workflow reduces labor requirements and speeds up gluing, pressing, and finished product discharge operations, optimizing the entire production cycle.
Perfect Gluing
The glue gun system provides controlled, clean, and reliable adhesive dosing.
Dimensional Accuracy
Equipped with an automatic correction device to ensure strict compliance with the preset dimensions.
Output Handling
The integrated conveyor belt automatically carries the glued carton to the output section, simplifying finished product handling and increasing overall productivity.
