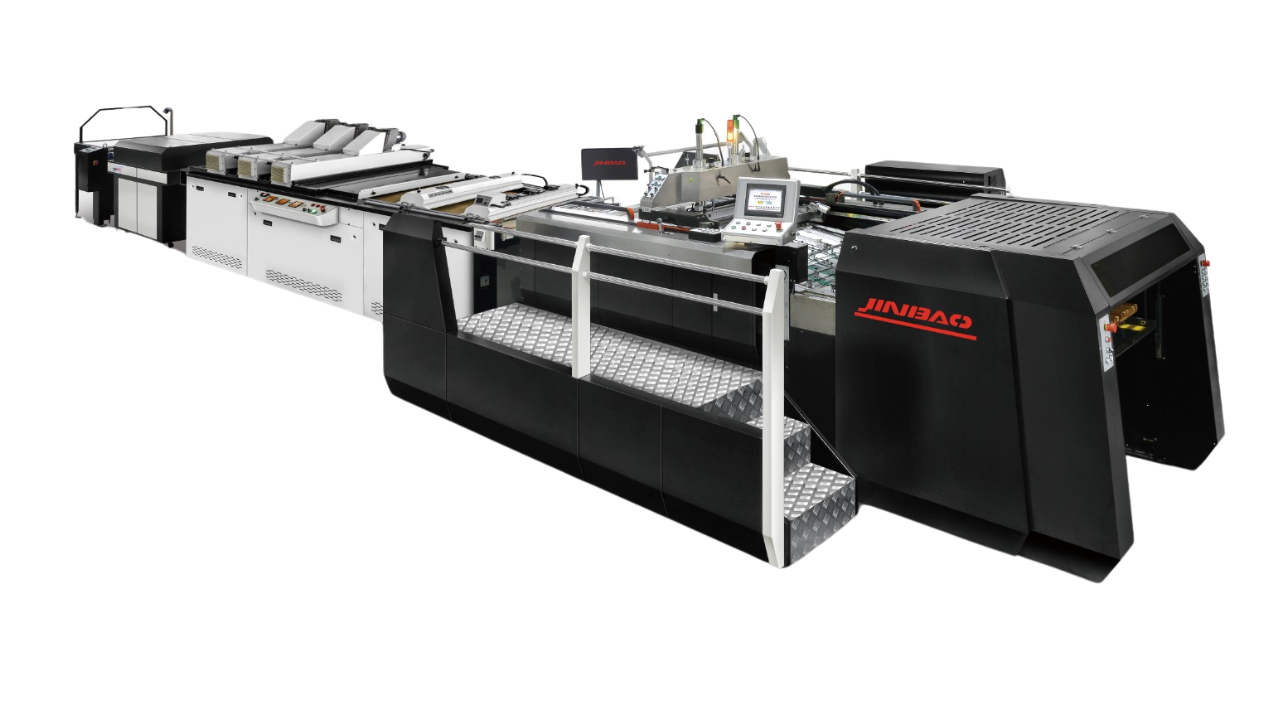

This EKS-106C model is a new intelligent screen printing machine, developed in-house and equipped with independent intellectual property rights. With three invention patents and five utility model patents, this machine is designed to ensure the highest printing quality at a speed of up to 5000 pieces/hour for standard products and up to 6000 pieces/hour for customized products. Ideal for a variety of industries, such as packaging, ceramics, textiles, electronics and more.
The machine adopts an innovative approach, replacing traditional mechanical transmission modes with servo motors to ensure synchronized control of different functions. This not only eliminates many mechanical parts, but also improves rigidity and reduces transmission errors, thus improving the printing quality and overall efficiency of the machine.
The paper feeding system offers an offset header for greater speed and stability. The stainless steel feed table ensures smooth transportation. The side tire gauge prevents stains on paper. Shaftless system reduces noise. The screen separation function makes recording easier. Finally, the lubrication system ensures precise operation
| Model | EKS-106C |
| Formato min | 500×350 mm |
| Formato max | 1060×750 mm |
| Max speed | 5000 f/h |
| Formato telaio | 1300×1170 mm |
| Paper weight | 70-350 gr |
| Power | 24,4 kw |
| Weight | 4600 kg |
| Size | 4850x4220x2050 |
